Industrial Automation
The family provides industrial connectivity capabilities for validated industrial automation requirements.
Explore applicationActive1 models

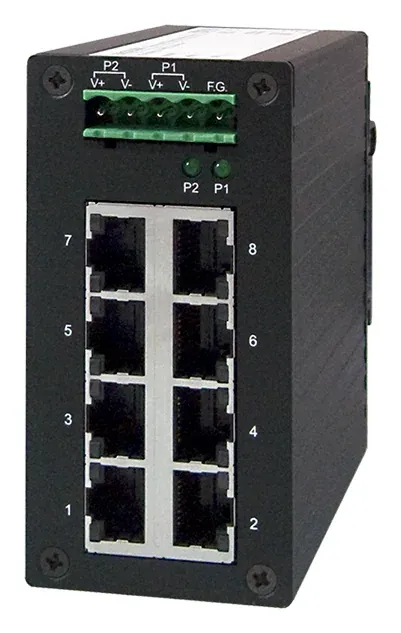

EHG2308
Industrial 8-Port Unmanaged Gigabit Switch
Overview
EHG2308 Series Router AP SE5201Computer PLC EHG2308 Router Internet SW5501POS Terminal RS232 RS232 Reliable: Its two redundant power inputs can be connected simultaneously to wide-range DC power sources. If one of the power inputs fail, the other live source takes over automatically, preventing interruptions to critical operations. Efficient: Although it is unmanaged, EHG2308 embeds an advanced Packet Prioritization feature. By reading the QoS field inside the VLAN tag of the packet, it prioritizes those packets that must reach the end device first. In Profinet-based Industrial Automation applications, for example, this feature helps ensure minimal delay on key commands, even during network congestion.
Review the shared capabilities of the family, then select a model to see the characteristics that distinguish that ordering option.
- EHG2308 is designed specifically for industrial applications in hazardous environments, offering 8 RJ-45 Gigabit ports as well as compliance with CE, FCC, UL, IP50 and RoHS standards.
- 8 x 10/100/1000 BaseT (X) (RJ45)
- 10/100/1000M Full/Half-Duplex, MDI/MDI-X auto-detection
- Support IEEE 802.3/ 802.3u/ 802.3x
- Profinet Packet Prioritization according to 802.1p
- Redundant DC power inputs
- Operating temperature ranges from -10°C to +70°C
Specifications
Shared technical capabilities
Specifications shown here apply at family level. Model-specific differences are identified in Models & Ordering.
ULCEFCCRoHS
Applications
Where this family fits
Application statements are derived from approved product literature and require engineering review before publication.
Models & ordering
Select the exact model
The selector highlights only what changes between variants. Shared specifications remain in the section above.
EHG2308
- EHG2308 is designed specifically for industrial applications in hazardous environments, offering 8 RJ-45 Gigabit ports as well as compliance with CE, FCC, UL, IP50 and RoHS standards.
- 8 x 10/100/1000 BaseT (X) (RJ45)
- 10/100/1000M Full/Half-Duplex, MDI/MDI-X auto-detection
Confirm the complete ordering code and regional availability with the responsible ATOP advisor.
