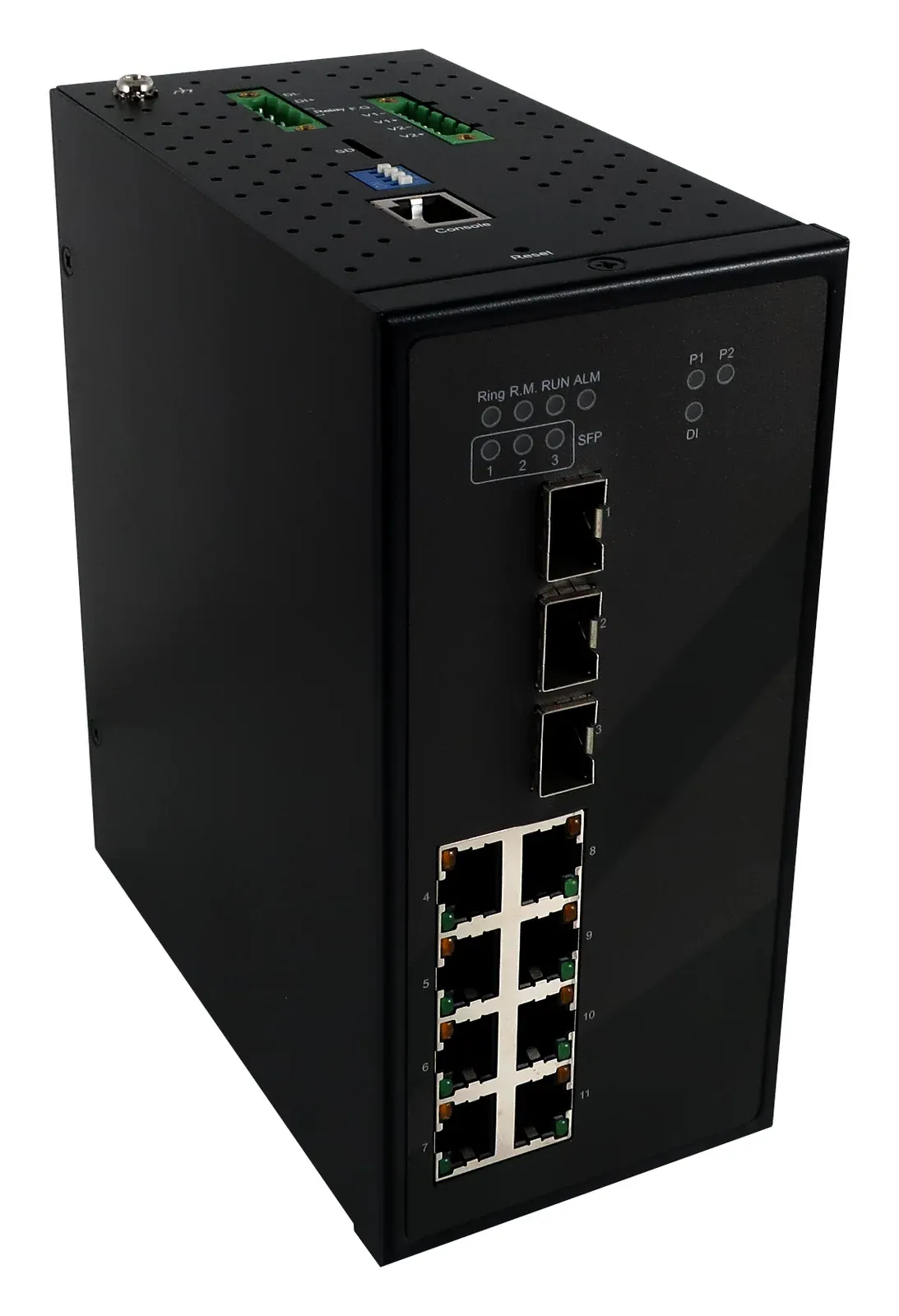

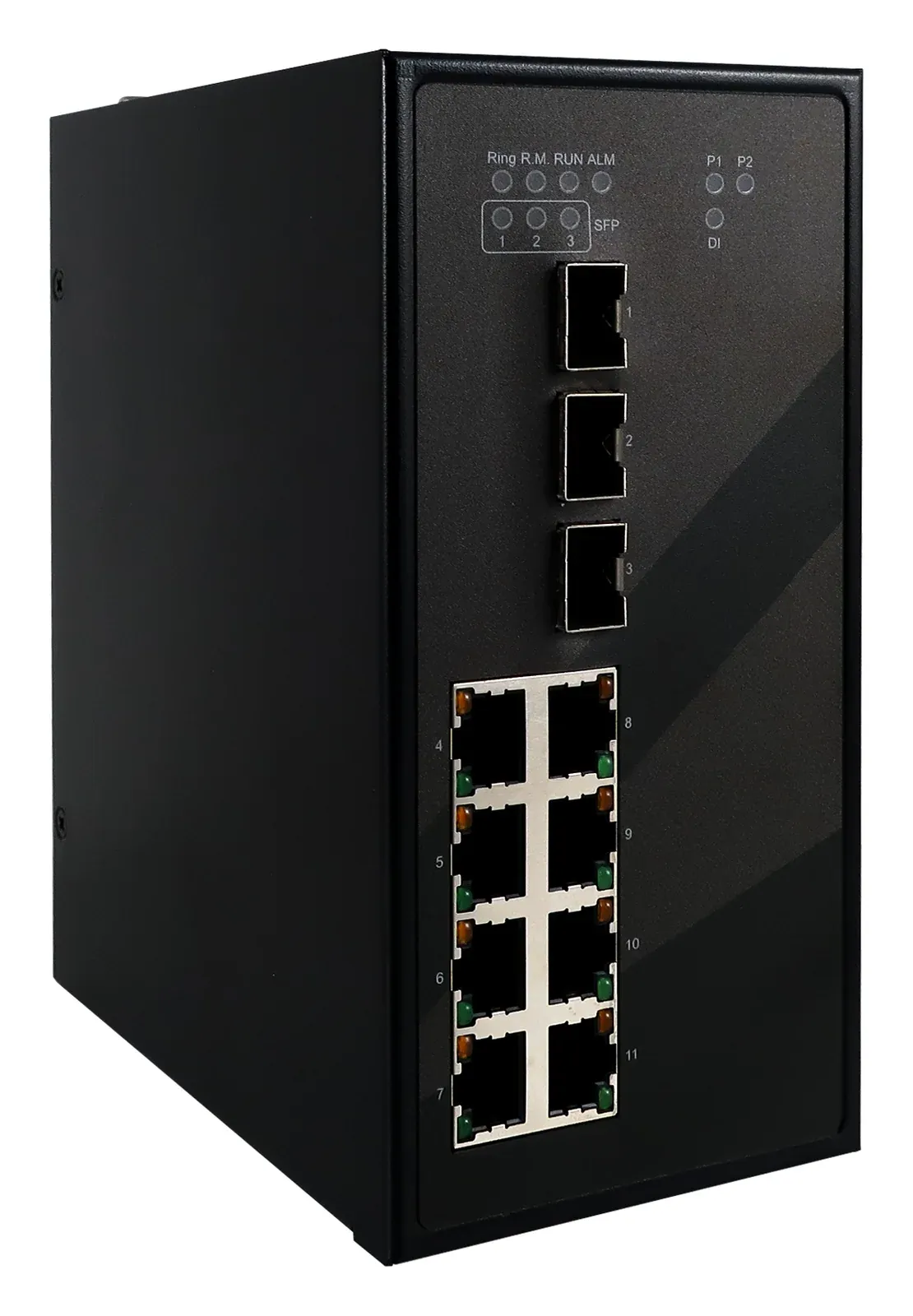

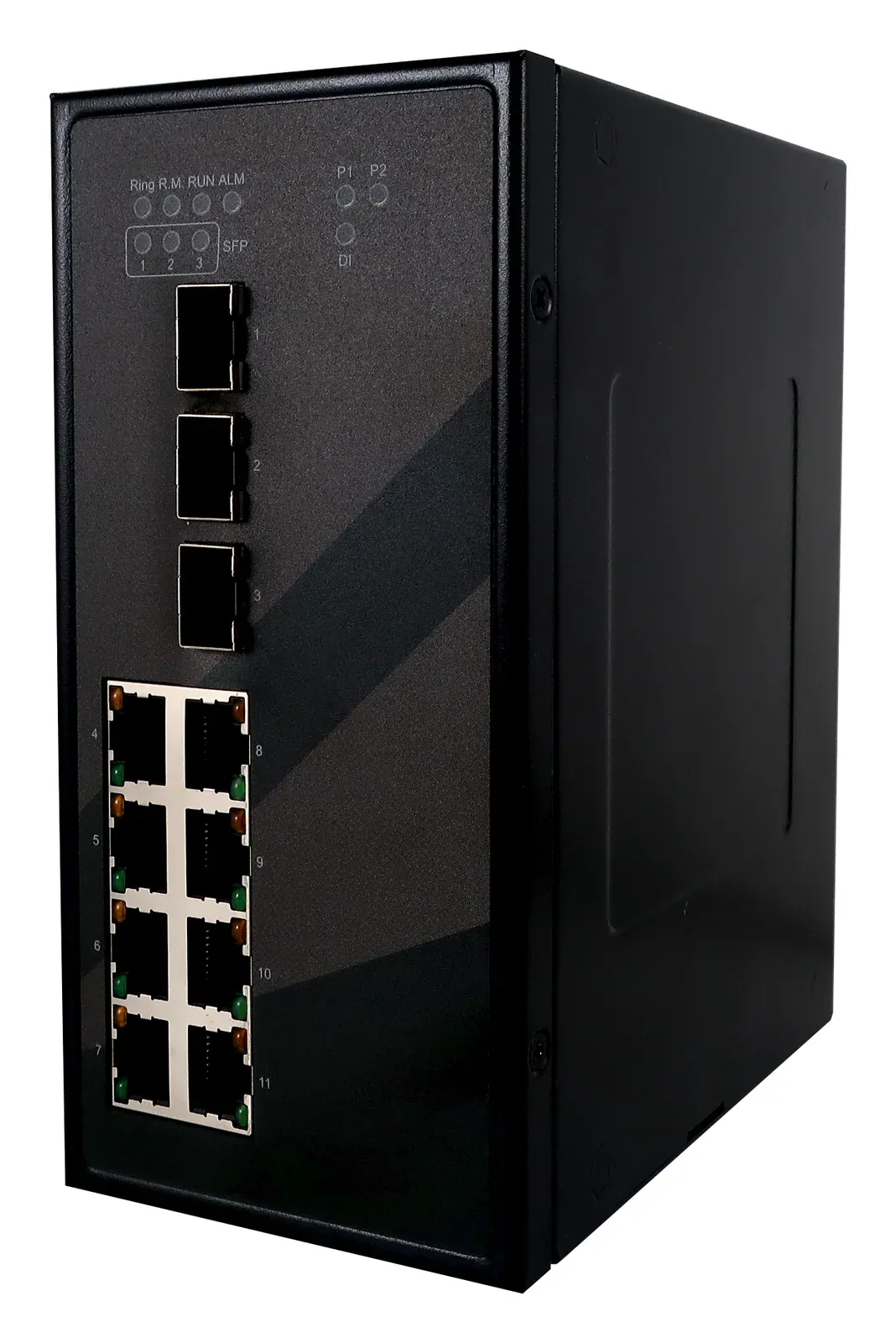

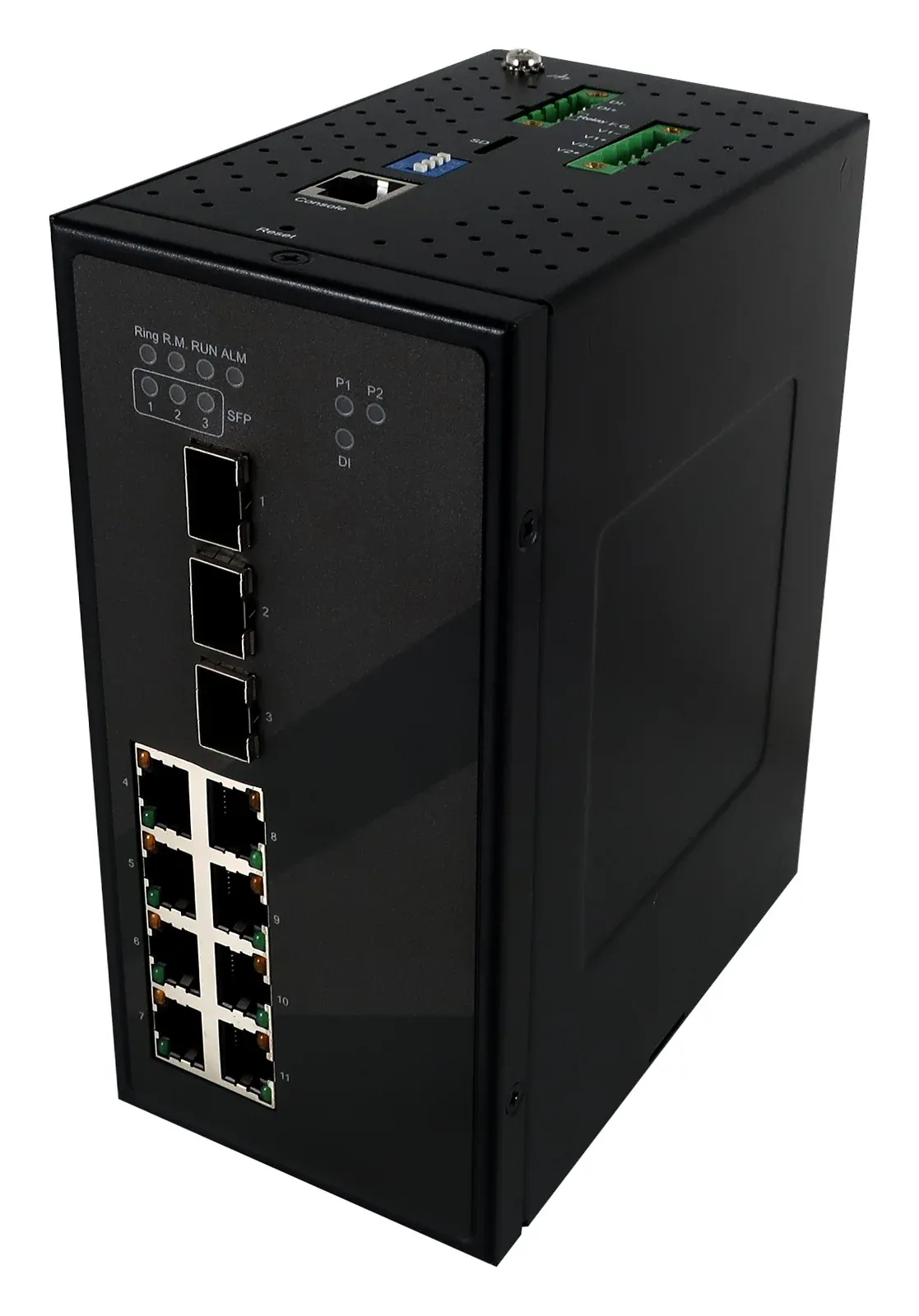

EH9711 Series
11-Port Fast Ethernet IEC 61850-3 Industrial Managed Switch
1 / 4
Overview
• 8x FE ports + 3x Gbps SFP ports • 1 x RS-232 console port (RJ-45 connector) • 4 x DIP switches for Ring control Comprehensive Connectivity • IEC 61850-3 & IEEE 1613 compliance • CE/FCC/UL & other certifications Substation-Fit Certifications • IEEE 1588 power profile specific parameters with C37.238 & IEC 61850-9-3 • Precision time synchronization with SyncE and IEEE1588v2 (PTP) P2P/E2E TC with delay within 50ns. Time Precision Certifications • Dimensions (mm): 77 x 167 x 138 • Operating temp. from -40°C to +75°C • Ambient relative humidity from 5% to 95% Compact & Robust Enclosure • Secure industrial network design based on IEC62443* • Access Control with 802.1x, AAA, ACL, IP Source Guard, etc. • Network Monitoring with Port Mirroring, sFlow*, etc. Secured & Trusted Network • Low-voltage 24-48 VDC or high-voltage 110-240 VAC/110-300 VDC power input • ITU-T G.8032 ERPS Ring, MSTP/RSTP/STP supported Reliable & Redundant Topology * Coming Soon
Review the shared capabilities of the family, then select a model to see the characteristics that distinguish that ordering option.
- EH9711 Series
Specifications
Shared technical capabilities
Specifications shown here apply at family level. Model-specific differences are identified in Models & Ordering.
- RJ-45 Ports
- 8 x 10/100BASE-T(X)
- Fiber Optics Ports
- 3 x 100/1000FX SFP Slot
- Console Port
- 1 x RS-232 (RJ-45 connector)
- Switching Capacity
- 7.6 Gbps
- Ethernet Standards
- IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3x for Flow Control, back pressure flow control IEEE 802.1d-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid STP IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.1x for Authentication IEEE 802.3ad for Port Trunk with LACP IEEE 802.1ad QinQ IEEE 802.1AB LLDP
- LED Indicators
- 1 x P1 & P2 & P3 (P3 for HV Model) 1 x Alarm 1 x Firmware Running 1 x Ring Master 1 x Ring 1 x SFP1 & SFP2 & SFP3 1 x Digital Input 1 x LAN Ports
- Relay Output
- 1 x Relay Output (24V/1A) with current carrying capacity of 1A @ 24 VDC
- DIP Switch
- 4 x for Ring Control
- Button
- 1 x Factory Reset
- Switching Fabric
- 5.7 Mpps
- Packet Buffer Size
- 1.75 Mb
- MAC Table Size
- 4K
IEC 61850-3IEC 62443-4-2IEEE 1613ULCEFCCRoHS
