AW5500C
This product has been discontinued. Please refer to AW5601 as the replacement. For detailed support, please refer to the notice or contact our product expert or your local agent.
Overview

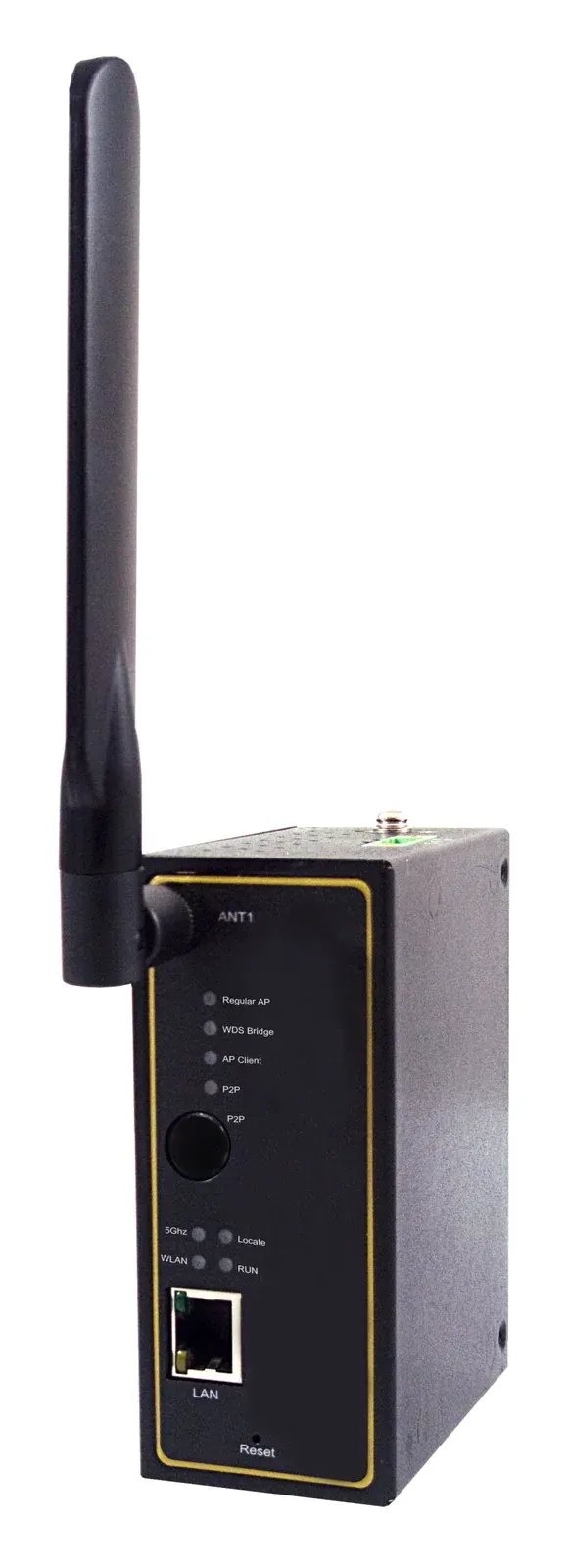

AW5500C Industrial Wireless Access Point
Review the shared capabilities of the family, then select a model to see the characteristics that distinguish that ordering option.
- Suitable in a wide array of applications, the new AW5500C is able to withstand harsh conditions typically found in the industry. AW5500C is also designed thinking on your security, state of the art encryption as well as having the ability to create a virtual network among wireless clients; this level of communication between clients can be easily and intuitively controlled using this option, Imposing restrictions on data and excluding malware at the same time. AW5500C embodies a strong wireless network manager that will surely deliver optimum performance in your network. AW5500C supports “WPS & Wi-Fi Direct” technology that makes Wi-Fi usage to be an ease-of-use connectivity, and delivers an industry-wide peer-to-peer solution based on broadly deployed Wi-Fi technologies.
- Designed for 802.11 b/g/n networks
- Web server/Utility configuration
- Upgrade via Device View or Web server
- Client isolation
- Different operating modes and topology options (WDS Bridge and AP Client)
- FCC (United States), ETSI (Europe) certified wireless equipment
Specifications
Shared technical capabilities
Specifications shown here apply at family level. Model-specific differences are identified in Models & Ordering.
- Connector
- RJ-45
- Input Voltage
- 9VDC - 48VDC
- Input Current(9VDC)
- 0.65A
- Power Consumption
- Approx. 5.85W (max)
- Reverse Polarity Protection
- Yes
- Protection Rating
- IP30
- Dimensions(W X H x D)
- 47 X 110 X 90 mm
- Weight
- 500g
- Installation
- DIN-Rail, wall mount (optional kit)
- Operating Temperature
- -10°C ~ 60°C (14°F ~ 140°F)
- Storage Temperature
- -40°C ~ 85°C (-40°F ~ 185°F)
- Ambient Relative Humidity
- 5 ~ 95% RH, (non-condensing)
ULFCCRoHS
Applications
Where this family fits
Application statements are derived from approved product literature and require engineering review before publication.
Models & ordering
Select the exact model
The selector highlights only what changes between variants. Shared specifications remain in the section above.
AW5500C
- Suitable in a wide array of applications, the new AW5500C is able to withstand harsh conditions typically found in the industry. AW5500C is also designed thinking on your security, state of the art encryption as well as having the ability to create a virtual network among wireless clients; this level of communication between clients can be easily and intuitively controlled using this option, Imposing restrictions on data and excluding malware at the same time. AW5500C embodies a strong wireless network manager that will surely deliver optimum performance in your network. AW5500C supports “WPS & Wi-Fi Direct” technology that makes Wi-Fi usage to be an ease-of-use connectivity, and delivers an industry-wide peer-to-peer solution based on broadly deployed Wi-Fi technologies.
- Designed for 802.11 b/g/n networks
- Web server/Utility configuration
Confirm the complete ordering code and regional availability with the responsible ATOP advisor.
